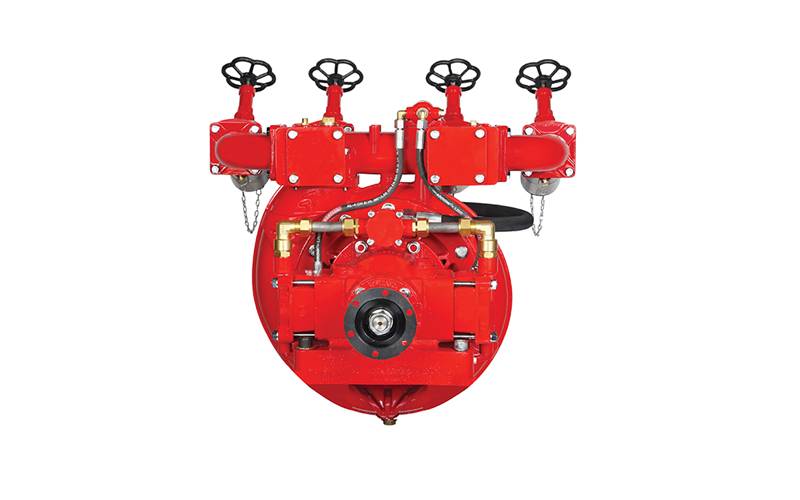

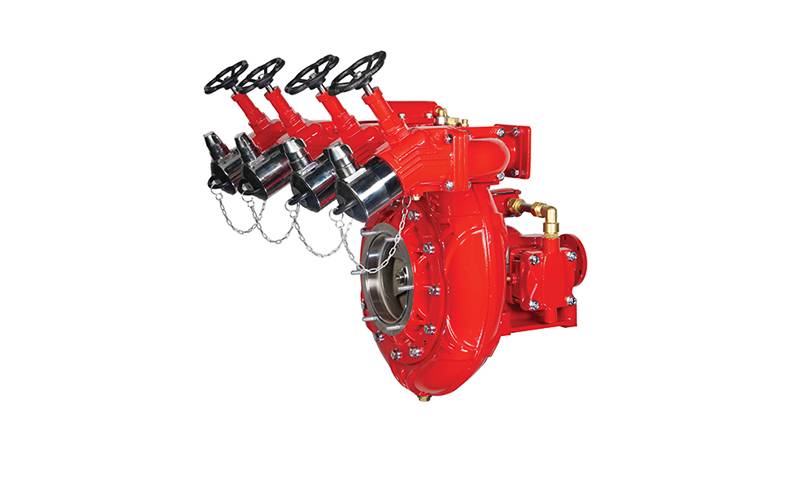

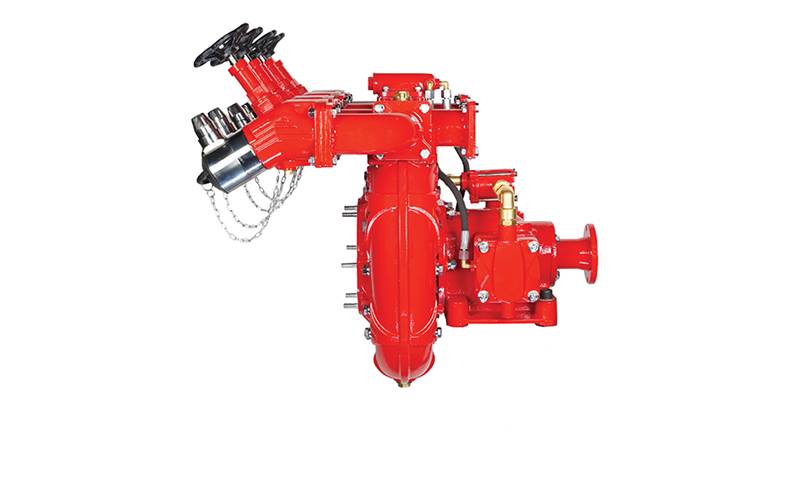

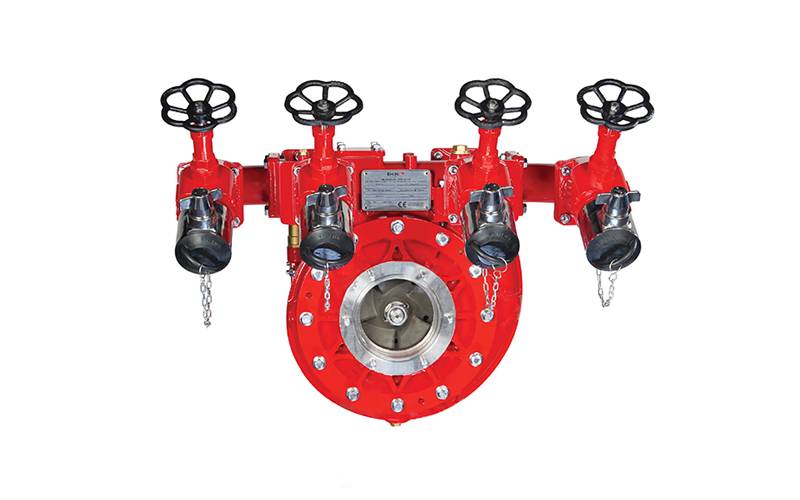

Vehicle Mounted Fire Pumps - RV NP 1040
- Description
- RV NP 1040
- Basic Data
- Typical Dimansions in mm (L X W X H)
- 740 X 725 X 680
- Priming System
- YES
- Mounting Bolt / Holes X Nos.
- M16 X 4
- No. of LP Discharge Outlet Manifold
- 6
- No. of HP Discharge Outlet Manifold
- NA
- Oil Capacity
- 1 Liter
- Technical Details
- Pump Stage
- 1
- Stage 1
- Low Pressure
- Stage 2
- NA
- Rated Performance (Low Pressure)
- 4000 lpm @ 10 bar
- Rated Performance (High Pressure)
- NA
- Required Power (Kw/HP) (Low Pressure)
- 97 kw / 130 hp
- Required Power (Kw/HP) (High Pressure)
- NA
- Rated RPM (Low Pressure)
- 3000
- Rated RPM (High Pressure)
- NA
- Limit Pressure (Low Pressure)
- 17 bar
- Limit Pressure (High Pressure)
- NA
- Suction Inlet
- 150mm
- Priming Performance Range
- 0 to 8 meters
- Recommended Priming Speed
- 2400 rpm
- Maximum Recommended Speed
- 3600 rpm
- Thermal Relief Valve Activation
- 50°C to 60°C
- Minimum Idle Speed
- 900 to 1000 rpm
